Attention: If you've
always dreamed of transforming your property into a living, functional work of art
but didn't quite know where to start, Eurocaststone guide can help you
. We are here to help you achieve
your masterpiece...
"Eurocaststone,
The ULTIMATE
Guide to Creating Your Ideal Dream Home"
Euro
Cast Stone manufactures a vast array of different stone simulated products.
Tile, slabs, moldings,

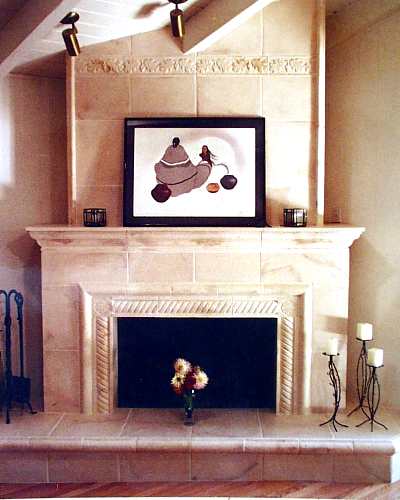

deco-tiles, borders, liners, fireplace surrounds, mantels, pier caps, wall
caps, window & door treatments.
The
product, regardless of its shape or color is made of white cement, white
aggregate and pigment oxide. The finished product resembles natural stone.
Cast Stone is colored throughout.
Veining and marbleizing can be created during casting
From: Jean Pierre
Time: Thursday, 10:30 AM
Re: Your Guide
Dear Friend,
Would you like to...
-
Transform your property?
-
Live in the home of your desire?
-
Change the style and way you live?
-
Create a space of ambient splendor?
-
Make money on improving your property?
Cast Stone adds Beauty and Value
Property and Home Improvement
We understand that today's sophisticated consumer
wants stability and durability integral to their investment.
All Euro Cast Stone
Products are
guaranteed to
stand the test of time
Cast stone per sae, has been
in existence for hundreds of years with structures still standing today.
In many cases, cast stone
has outlasted natural cut stone.
Since the early 1920's, cast stone has been widely
used and accepted as a superior replacement for natural cut stone
Guaranteed Unbeatable Prices
We still believe it's t he
most cost-effective way to achieve your Ideal Dream Home and realize
maximum value on your property - pure ROI
Cast Stone Quality
Amazing Stone Age Effects
DOWNLOADS
Full color brochure in PDF format
(Adobe Acrobat Reader)
Introduction & Specs
I
Architectures I
Catalog
I
Gallery
I
Fireplaces
http://www.adobe.com/products/acrobat/readstep2.html
Email:
Euro Cast Stone
For more information and technical
support contact
Toll Free Phone:
(888) 750-6665 Fax: (530)
878-4452
Building and Construction News
Building and Building
Materials
DESCRIPTION
Recommended Eurocaststone Products
Slabs & Tiles
Maximum size for slabs is 30" x 60".
All slabs are 1.5" thick.
There are 5 edges available:
Eased edge, Bullnoze, French Ogee,
English ogee and a special Euro-edge.
The Euro edge is molded and is
reversible but no radius is available.
Slabs should be fitted in place
before final installation. Epoxy or PL 400 is commonly used for gluing
them in place. A matching color siliconized grout is best for the grout
joints.
We manufacture tiles in many
different sizes & shapes.
Current sizes are 4" x 4", 6" x 6"
and 12" x 12" in 1/2 inch thick, 8" x 8", 8" x 16", 16" x 16" in 3/4 inch
thick which can be used for a Versailles pattern.
The castle stone is 1" thick and
6x6-6x12-12x12-12x18-18x18 and 18x24. (Very rustic) Special sizes available upon
request.
Each of the decorative Deco tiles,
Borders and moldings shown on the brochure are in stock in one color only,
color #4 which resemble a light colored limestone.
From this color, Euro Cast Stone
offers two different coloring alternatives seen on page 13 of the
brochure.
Glazing,
Staining & Antiquing
Glazing
We have developed 3 different
standard cement glazes, SIENNA, DESERT ROSE and OCHRE.
They can be used inside or outside
but not for flooring. Their advantage is a constant color in the
production. These glazes are formulated in batches and do not vary in
color.
Staining
Euro Cast Stone has selected a
Chemical Stain made by Scofield.
There are seven stains:
Black, Padre Brown, Avocado, Dark Walnut, Antique Amber, Faded Terra-cotta
and Weathered Bronze.
They can be used either on floor
tile or vertical deco, etc.
The result of staining will vary and
creates different colors on the stone.
It is a topical application of an
acid that reacts to the cement.
Bullnozes and trims will have to be
treated with the stain after fabrication.
Euro Cast Stone can provide some of
the stain for this purpose.
PRODUCT INSTALLATION AND CARE SHEET
FLOOR TILE INSTALLATION
Euro Cast Stone tiles should not be
bonded directly to wood for floor application.
Euro Cast Stone recommend the use of
"Wonder board" 7/16th thick or similar backer board or the use of wire
mesh with dry pack or wet mortar bed. It is important that the setting
surface is sound and has no movement.
Euro Cast Stone tiles should only be
installed with the thin set method and we recommend the use of an acrylic
mortar admix. For Structural items the use of an epoxy can apply.
Countertops
To attach to cabinetry, it is
recommended to use "PL400" construction adhesive. An option would be the
original red label "Liquid Nail". Once all slabs are dry fitted on
counters, use little dabs 1" tall and 2" in diameter every 8". Your joints
should not be more than 1/8" wide and treated with siliconized sanded
grout (caulking), in the best matching color.
Things to remember
1. Use an acrylic admix in the thin
set and grout.
2. Use 1/8" grout joint or wider.
3.
Back of the stone
should be free of dust or loose dirt.
4. Set the tile firmly into the
setting bed to provide 100 % contact.
5. 1/2 " notched trowel is
recommended.
6. For larger sizes 12" or larger,
it is necessary to back butter the tile.
7. Do not spread too much thin set,
if skimming occurs, a bond failure will result.
8. Keep your installation clean of
thin set and debris.
GROUTING
All Euro Cast Stone products are pre-sealed in our
factory. This will eased the grouting procedure.
Euro Cast Stone recommend the use of
a premixed cement grout to which you could add an acrylic admix.
Euro Stone does not recommend the use of epoxy grout.
Mix your grout with 50% add mix,
50% water. Use a grout trowel to press the grout in the joints.
After few minutes, even-out the
joints with a sponge and sponge clean the tile surface. Avoid excess of
water it will create discoloration in the grout. Make sure to remove any
film, haze or grout on tile. Once the grout is fairly dry, use a clean rag
to fine-tune the grout edges.
SEALANT
Although our products are factory
pre sealed, it is necessary to apply one or two coats of sealer after
installation. The sealer will protect and enhance the tile and grout and
give you a long time protection against staining, discoloration and
premature wear.
For countertops, especially in food
preparing areas, it is necessary to apply 4/5 coats of sealer until cement
slabs does not absorb the sealer anymore.
ECS Select and Recommend
"Miracle Sealant
Company"
www.miraclesealants.com
Their Sealer "511 Porous Plus" has proven to be the best
premium sealer on the market.
Prior sealing the installation, it is important:
1. To READ the label.
2. That all moisture has evaporated
and the installation is dry.
3. Tile is COMPLETELY CLEAN.
4. Maintain adequate ventilation.
5. Apply the sealer with a soft
sponge or a brush in even coats.
6. Let stand for 3-4 minutes
especially for counter tops and remove excess.
7. Allow minimum of 24 hours between
coats.
8. Tiles should not be walked on
after final coat for at least 24 hours.
EXTRA CARE
Even with the best sealers,
accidents can happen and create etch marks or stains.
Remember that with all stones
containing lime (limestone, travertine, marble and cement) you need to be
careful with acids.
Most of the foods and liquids we
ingest are acidic to a certain degree.
We found that there are 3 categories
of staining problems in the stone industry.
1. Etch marks.
2. Color discoloration from oil.
3. Color discoloration from non-oily
products.
Our solutions for these problems on
ECS products:
Etch marks from acids can be remove
by using an 80 grit abrasive paper.
Simply sand down the surface until
you have an even result.
Color discoloration from oil: First
use a strong detergent. If the stain persists, you will need to use a
product called “Poultice”. Repeat the process following their instructions
until the stain has been lifted. Miracle sealants carry a complete line of
sealer, striper & cleaning products that are designed to work with each
other.
Usually non-oily stains happen
because the sealer barrier has been broken with an acid.
To solve this problem, you will need
to perform both processes above.
If your countertops have aged, you
will need to treat the whole surface to even-out the patina.
For stain-finish-countertops, make
absolutely sure that oil stains have been removed completely before
reapplying some chemical stain. The chemical stain will not react evenly
if the cement is impregnated with oil. Control the color prior sealer.
After the stain, echt marks and
patina have been restored apply several coats of sealer.
For lasting protection remember that
there is no such thing as over sealing your countertops.
DOWNLOADS
Full color brochure in PDF format
(Adobe Acrobat Reader)
Introduction & Specs
I
Architectures I
Catalog
I
Gallery
I
Fireplaces
http://www.adobe.com/products/acrobat/readstep2.html
Email:
Euro Cast Stone
For more information and technical
support contact
Toll Free Phone:
(888) 750-6665 Fax: (530)
878-4452
PHYSICAL TEST DATA
Euro Cast Stone has been tested for
the following performance standards:
Abrasion tests: ASTM C501
Coefficient of friction: ASTM
C1028-89
Water absorption: ASTM C642
Compressive strength ASTM C39 / C172
/ C143 / C31.
All tests were performed according
to appropriate CTI and/or ASTM test methods
By Twining Laboratory and Capitol
Engineering Laboratories Inc.
EURO CTI STANDARDS STONE
Abrasion tests: 76
Natural clay type paver: 50
Porcelain type paver: 100
Coefficient of Friction
.92 / dry Known industry & ADA C. of F.
Coefficient of Friction .71
/ wet Requirement is >.60 on any condition.
Water absorption **
7.4 % 4 % Minimum - 18 % Maximum
Compressive strength
6400 PSI No requirement
All tiles pre-sealed at the factory
with indoor / outdoor penetrating sealer.
Euro Stone products should be
installed according to ANSI A108.1 and A118.1. (See the Handbook for
Ceramic tile Installation)
** Absorption test made prior to
sealing
Copy of actual test
reports available upon request |
Look forward to hearing from you.
All the best,
Jean Pierre
Copyright 2005 Euro
Cast Stone
Internet Marketing
14330 Musso Road, Auburn, CA 95603
Questions?
Email Us at:
pierre@eurocaststone.com
|
|
|
|
|
[Cast Stone] Pre Cast Stone by
EUROCASTSTONE ART WORKS. Your Guide to Custom Masonry and Architecture. ECS, Cast
Stone Masonry, Building Materials and Building Construction News, Manufactures unique original designs, custom masonry and architectural, cast
stone fireplace, cast stone fireplace mantel, fireplaces, fireplace mantel, cast
stone mantel, architectural cast stone, cast natural stone, masonry, masonry
contractor, stone masonry, masonry fireplace, architecture, modern architecture,
architecture design, medieval architecture, Roman architecture, gothic
architecture, column, cast stone column, architectural column, Greek column,
decorative column, counter tops, kitchen counter tops, concrete counter tops,
cement countertop, precast countertop, cement tile, concrete pavers, overmantel,
fireplace overmantel, overmantels, custom mantel, custom mantels, fireplace,
cast stone fireplace, cast stone fireplace mantel, cast fireplace stone
surround, cast fireplace outdoor stone, cast fireplace mantle stone, mantel,
precast fireplace, cast fireplace surround, window surrounds, window sill,
hearth, fireplace hearths, hearths, fireplace hearths mantel, mantle, fireplace
mantle, mantle shelf, fire place hearths, door surrounds, art, stone age
functional art, cast stone art, works art, original art works, interior design,
design, kitchen design, home design, molded decorative cement-based Cornices,
Borders, precast stair treads, stair treads, balustrade, balusters, baluster
stairs, stair nozing, Architraves, Tumbled Tiles, Window sills, Door Surrounds, front door,
exterior front door, front porch, front porch designs, key stone, decorative key
stone, corbels, decorative corbels, architectural corbels, exterior corbels,
stone corbels, large corbels, exterior molding, baseboard trim, mantel piece,
solid surface, solid surface counter tops, solid surface vanities tops, wall
cap, Fireplace Mantels and Counter Tops. Property and Home Improvement, Ideal
Home, Guide, Cast Stone Quality, Building and Building Materials, History of
Cast Stone, We Will Custom Match Your Colors. Auburn, Lincoln, Sacramento, CA,
California also Reno & Carson City, Nevada, by www. eurocaststone.com , The
Cast Stone Specialists, Cast Stone California.
